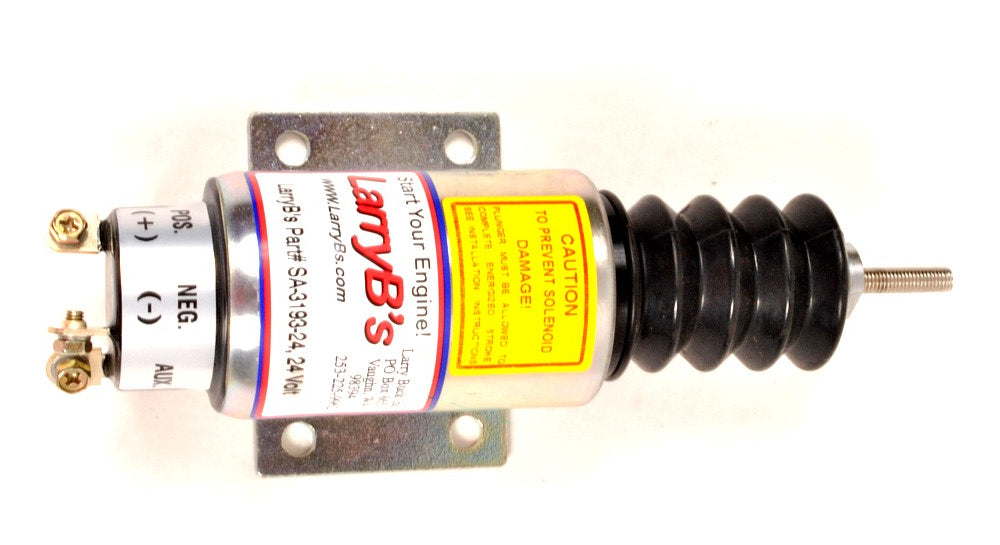

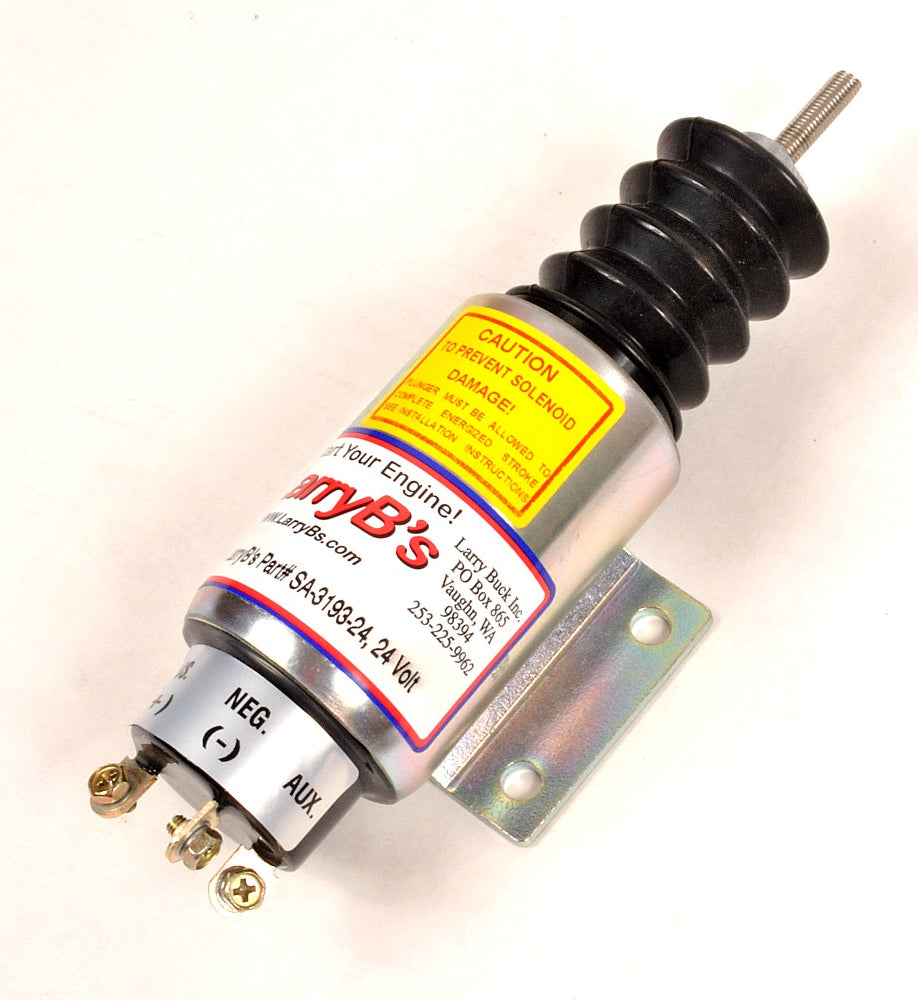

LarryB's Syncro Start Fuel Shutdown Solenoid, SA-3193-24 24 Volt

Syncro Start replacement solenoid SA-3193-24, 2003-24E2U1B2A, 24 Volt

This solenoid has two coils. It also has an internal switch that disconnects the stronger coil once the solenoid is engaged. This allows a single wire setup using a mechanical double contact switch that is mounted on the rear of the solenoid to turn off the pull coil. Internally switched solenoids are best suited for applications such as standby generator sets or other applications where vibration, dirt, moisture, and excessive cycling are not present.

Wiring Diagram Here

In the installation of “internally switched” dual coil solenoids, it is critical that the solenoid
plunger be allowed to travel to its fully engaged position to insure that the plunger will
automatically open the internal switch and disconnect the high current pull-in coil, eliminating
the chance of coil burnout. Improper linkage adjustment will cause coil burnout within 2 minutes. Please followinstructions carefully. Solenoids that burn out due to improper adjustment are not covered by warranty.

An Aux terminal is a feature offered on some internally switched solenoid
models. A lamp or a relay coil (50 ohms minimum) could be wired across the
positive and Aux terminals of the solenoid to illuminate or trip a relay when the
solenoid plunger is fully seated (energized position) in the solenoid bore,
indicating the solenoid pull-in coil is switched off and the hold coil is energized.
